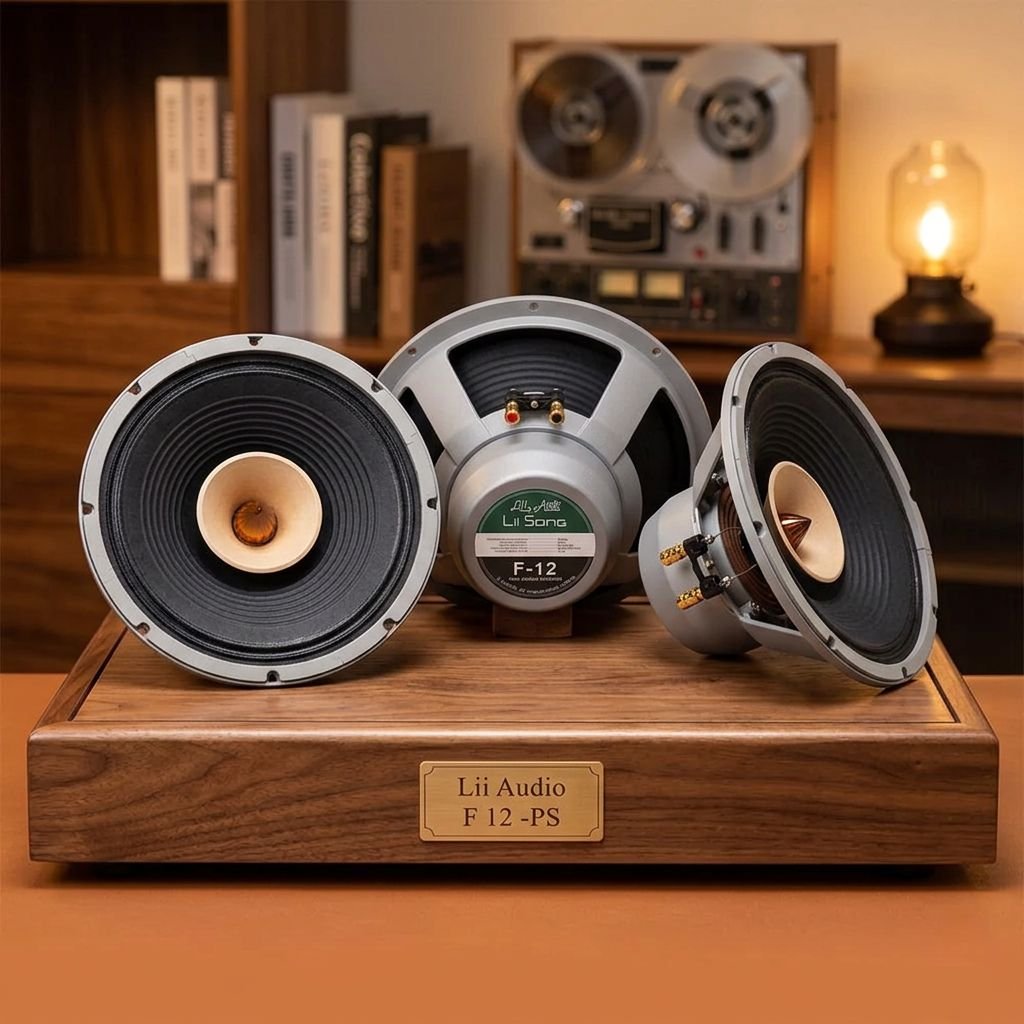

F-12 PS

Description

The development of F-12 paper surrounding version was inspired by demands of customers who prefer paper-to-edge surrounding over foam ones, after experiments, we found this feasible by compromising a little the bass while gaining some advantage in high, after some experiments and adjustments on the composition, F-12PS comes out. The tone stays the same but a little compromise in bass for longer surrounding lifetime, also, we didn’t merely change the surround but did some adjustments for a little boost on high notes therefore the overall tone would get more clarity.

• Nominal impedance Z: 8Ohm
• Power：40-80W
• Frequency response：50-17khz
• Fs: 59.4 Hz
• Sd: 54.325 cm³
• Qms: 15.161
• Qes: 1.116
• Qts: 1.040
• Magnet：Y35（Ferrite）
• Mean Sound Pressure Level: 95.2dB （2.83V/1m）
• Weight: 11 KG
• Package dimension: 42*36*36 cm
• Paper Cone Material: Compound Pulp
